CEEG Dry-type Rectifier Power Transformers Manufacturer

PRODUCT OVERVIEWS

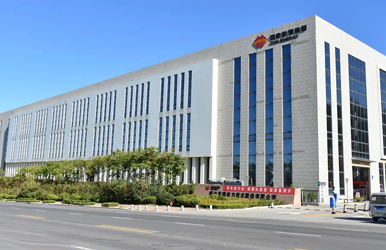

The successful application of rectifier dry-type transformer in Yantai Longyuan plasma ignition system has attracted the attention and coverage of CCTV News, demonstrating the outstanding strength and technological innovation of China Electric in the field of power equipment.

Performance Characteristics：

Safe and reliable

Made of non-toxic and flame-retardant epoxy resin infusion, with high mechanical strength, flame retardant, fire-resistant, and pollution-free.

Easy installation

The whole machine can enter the site and be put into operation once it is in place, which is convenient and easy.

Insulation and heat resistance

H-level insulation is heat-resistant, capable of withstanding 180 ℃ and high overload force ≤ 200%.

Saving Investment

It can be installed in combination with electrical equipment such as rectifiers to save space and reduce investment.

Manufacturing Process:

Reliability of Insulation Technology

From the initial two-dimensional electric field simulation, three-dimensional electric field measurement, and impulse characteristic measurement, to the later theoretical analysis and simulation tests on the characteristics of the transformer's main insulation, longitudinal insulation, end insulation, lead insulation, and coil under lightning impulse voltage, the reliability of the insulation is ensured.

Calculation of leakage magnetic field and reduction of stray losses

Research is conducted specifically on the calculation and measurement of transformer leakage magnetic field, shielding structure of leakage magnetic field, calculation of transformer dynamic and thermal stability, and improvement of transformer dynamic and thermal stability capabilities to ensure the calculation of leakage inductance field and reduce stray losses.

Accurate analysis of coil temperature field

Our company has developed a calculation program for the temperature field of the coil, which accurately calculates the temperature distribution of the coil and the temperature rise of the hot spot by calculating the loss distribution and flow velocity field cooling condition of the coil, in order to take measures.

Reduce the local discharge of transformers

The electric field strength of each part has been analyzed and strictly controlled during the design phase.

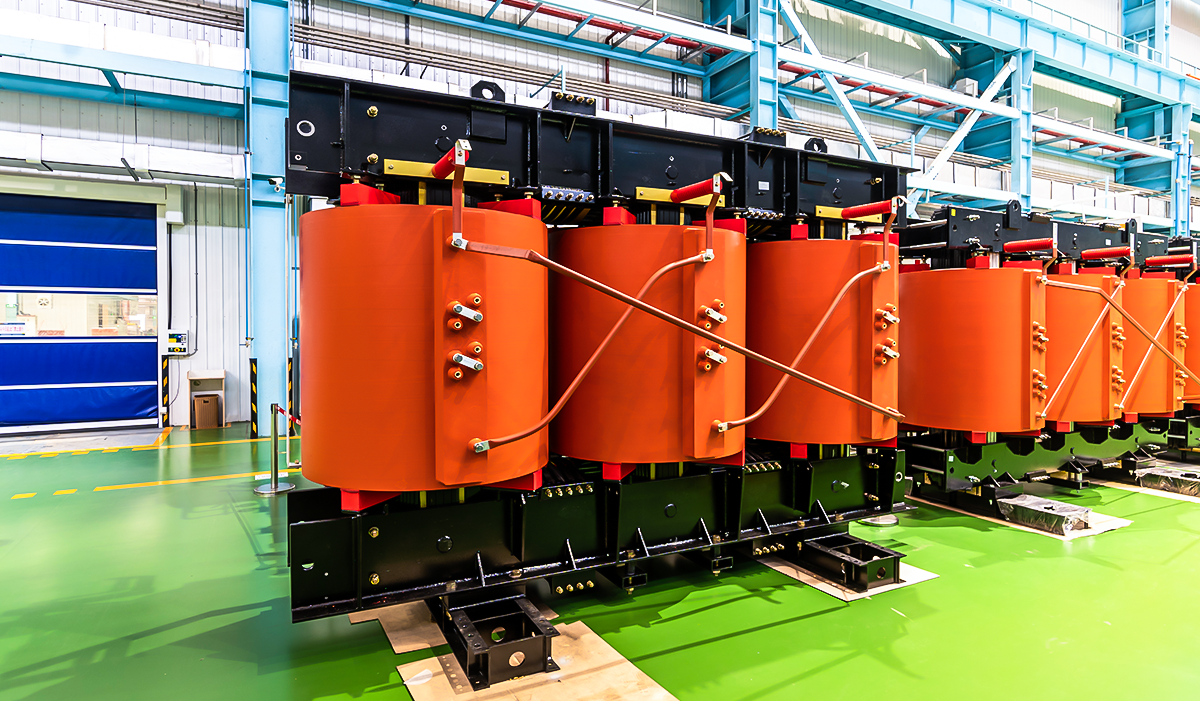

CEEG Dry-type Electrical & Power Rectifier Transformers (1).png

PARAMETERS

Model	Capacity(KVA)	Rated Voltage(KV)		Tapping Range	Vector Group	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge
Model	Capacity(KVA)	Net Side	Valve Side	Tapping Range	Vector Group	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge
ZBSCB10	200	10 6.3	0.4 0.66 0.69	2*2.5%	Dyn11 Yyn0 Dd0	4.0	≥0.97	1250	550 x 550
ZBSCB10	250					4.0	≥0.97	1430	550 x 550
ZBSCB10	315					4.0	≥0.97	1570	660 x 660
ZBSCB10	400					4.0	≥0.98	1750	660 x 660
ZBSCB10	500					4.0	≥0.98	1970	820 x 820
ZBSCB10	630					6.0	≥0.98	2250	820 x 820
ZBSCB10	800					6.0	≥0.98	2590	820 x 820
ZBSCB10	1000					6.0	≥0.98	2940	820 x 820
ZBSCB10	1250					6.0	≥0.98	3420	820 x 820
ZBSCB10	1600					6.0	≥0.98	3830	820 x 820
ZBSCB10	2000					6.0	≥0.99	4500	820 x 820
ZBSCB10	2500					6.0	≥0.99	5350	820 x 820
ZBSCB10	500	35 36 37 38.5				6.0	≥0.98	2680	820 x 820
ZBSCB10	630					6.0	≥0.98	3300	820 x 820
ZBSCB10	800					6.0	≥0.98	3810	820 x 820
ZBSCB10	1000					6.0	≥0.98	4650	1070 x 1070
ZBSCB10	1250					6.0	≥0.98	5250	1070 x 1070
ZBSCB10	1600					6.0	≥0.98	5750	1070 x 1070
ZBSCB10	2000					6.0	≥0.99	6380	1070 x 1070
ZBSCB10	2500					6.0	≥0.99	7390	1070 x 1070

Model	Capacity(KVA)	Rated Voltage(KV)		Tapping Range	Vector Group	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge
Model	Capacity(KVA)	Net Side	Valve Side	Tapping Range	Vector Group	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge
ZQSC-800/10	800	10 6.3	0.66 0.69 0.96 1.10 3.0	±2*2.5%	Dy11d0	6.0 7.0 8.0 10.5 12.5	≥0.96	3500	820 x 820
ZQSC-1000/10	1000							4330	820 x 820
ZQSC-1250/10	1250							4900	820 x 820
ZQSC-1600/10	1600							4300	820 x 1070
ZQSC-1800/10	1800							5100	820 x 1070
ZQSC-2000/10	2000							6000	1070 x 1070
ZQSC-2500/10	2500							6700	1070 x 1070
ZQSC-2750/10	2750							7100	1070 x 1070
ZQSC-3300/10	3300							8200	1070 x 1070
ZQSC-1600/35	1600	35 33						5900	820 x 1070
ZQSC-2000/35	2000							6500	1070 x 1070
ZQSC-2500/35	2500							7500	1070 x 1070
ZQSC-2750/35	2750							8600	1070 x 1070
ZQSC-3000/35	3000							9100	1070 x 1070
ZQSC-3300/35	3300							9800	1070 x 1070
ZQSC-4000/35	4000							10800	1070 x 1070
ZQSC-4400/35	4400							11900	1070 x 1070

Rated Capacity(kVA)	Model	Voltage Combination			Vector Group	Short Circuit Impedance	No-Load Loss(kW)	Load Loss（kW)75℃	Gauge（mm)
Rated Capacity(kVA)	Model	High Voltage(kV)	Tapping Range	Low Voltage(kV)	Vector Group	Short Circuit Impedance	No-Load Loss(kW)	Load Loss（kW)75℃	Gauge（mm)
630	ZHST/ZHSS/ZHS	35, 10, 6	±2*2.5%	0.75 x 2 0.72 x 2 0.69 x 2 0.66 x 2 0.42 x 2 0.5~0.16	Dd0y11/ Dy11d0/ Dy11	6~8	0.84	7.85	820 x 820
800							1.15	13.35	820 x 820
1000							1.38	15.24	820 x 820
1250							1.5	17.65	1070 x 1070
1600							1.8	19	1070 x 1070
2000							2.2	26.2	1070 x 1070
2500							2.48	27.5	1070 x 1070
3150							3.28	31.73	1070 x 1070
4000							4.66	46.82	1070 x 1070
5000							5.4	51.72	1070 x 1070
6300							6.2	59.5	1475 x 1475
8000						8~10	6.5	70	1475 x 1475
10000						8~10	7.8	87	1475 x 1475
12500						8~12	21.0	100	2070 x 1475
