CEEG SC(B) Series Epoxy Cast Dry-Type Power Transformers

PRODUCT OVERVIEWS

Low No-load Loss

Made with 0.18mm high-quality, high-permeability silicon steel sheets with full slanting joints and multi-stage step process, resulting in low no-load losses.

Advanced Technology

High-voltage coils are produced using imported German HEDRICH vacuum casting equipment; fully automated online mixing ensures bubble-free casting of coils with minimal partial discharge.

Superior Performance

Utilizes electric field, thermal field, and magnetic field simulation analysis; among the first in China to pass KEMA's E2, C2, and F1 tests.

Energy Saving and Environmentally Friendly

Resin cast insulation encapsulation is resistant to corrosion, flame-retardant, explosion-proof, low-loss, low-noise, environmentally friendly, and pollution-free.

Manufacturing Process:

CEEG's "3D + Parametric" design software enables automated design, cost optimization, simulation, and emulation, fully considering national and industry standards and ensuring the advanced design of products.

High-Voltage Winding

The high-voltage winding conductors are made of high-quality materials, with reinforcement fillers using long and short cut glass fiber mats. They are cast under vacuum using the world-class HEDRICH vacuum casting system, achieving a partial discharge level of less than 5 pC.

Low-Voltage Winding

The low-voltage windings are made with high-quality pin conductors, wound on automatic box winding machines. These machines utilize "wire hydraulic energy-saving tension curling device," with ±0.5mm high-precision detection and advanced hydrogen arc welding technology.

Core

The core is made of high-quality, high-permeability oriented silicon steel sheets, featuring a 45° full slanting step lap process. The surface is coated with a special moisture-proof and rust-proof coating, effectively reducing no-load losses, no-load current, and noise levels.

Testing and Inspection Technology:

All products undergo rigorous testing before delivery according to relevant standards and customer-specific requirements, including partial discharge testing, lightning impulse withstand testing, noise testing, and other mandatory inspections.

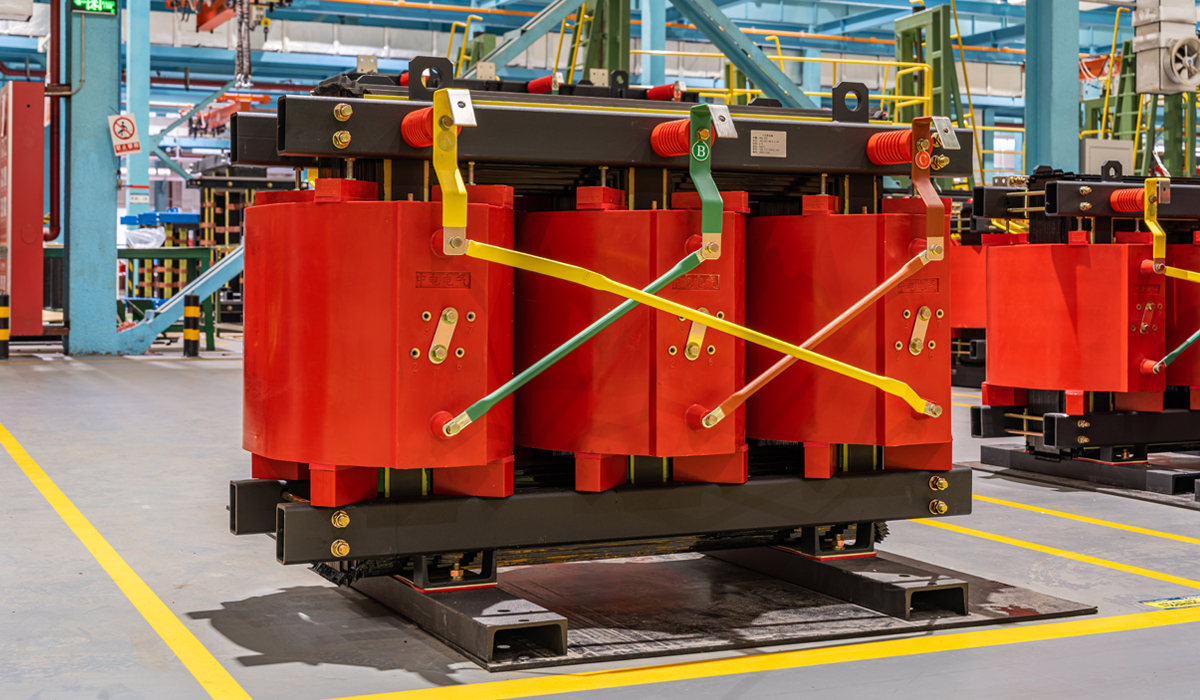

SC(B) Series Epoxy Cast Dry-Type Transformer (1).jpg

PARAMETERS

Class F Insulation SCB10-315~2500/10
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n
SCB10-315/10	4	880	3470	1.0	55	660 x 660
SCB10-400/10	4	980	3990	1.0	55	660 x 660
SCB10-500/10	4	1160	4880	1.0	57	660 x 660
SCB10-630/10	4	1340	5880	0.85	57	820 x 820
SCB10-630/10	6	1300	5960	0.85	57	820 x 820
SCB10-800/10	6	1520	6960	0.85	58	820 x 820
SCB10-1000/10	6	1770	8130	0.85	58	820 x 820
SCB10-1250/10	6	2090	9690	0.85	60	820 x 820
SCB10-1600/10	6	2450	11700	0.85	60	820 x 820
SCB10-2000/10	6	3050	14400	0.70	62	820 x 820
SCB10-2500/10	6	3600	17100	0.70	62	820 x 820

Class F Insulation SCB12-315~2500/10
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**

Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n
SCB12-315/10	4	705	3470	1.0	55	660 x 660
SCB12-400/10	4	785	3990	1.0	55	660 x 660
SCB12-500/10	4	930	4880	1.0	57	660 x 660
SCB12-630/10	4	1070	5880	0.85	57	820 x 820
SCB12-630/10	6	1040	5960	0.85	57	820 x 820
SCB12-800/10	6	1210	6960	0.85	58	820 x 820
SCB12-1000/10	6	1410	8130	0.85	58	820 x 820
SCB12-1250/10	6	1670	9690	0.85	60	820 x 820
SCB12-1600/10	6	1960	11700	0.85	60	820 x 820
SCB12-2000/10	6	2440	14400	0.70	62	820 x 820
SCB12-2500/10	6	2880	17100	0.70	62	820 x 820

Class F Insulation SCB12-315~2500/10
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n
SCB12-315/10	4	705	3470	1.0	55	660 x 660
SCB12-400/10	4	785	3990	1.0	55	660 x 660
SCB12-500/10	4	930	4880	1.0	57	660 x 660
SCB12-630/10	4	1070	5880	0.85	57	820 x 820
SCB12-630/10	6	1040	5960	0.85	57	820 x 820
SCB12-800/10	6	1210	6960	0.85	58	820 x 820
SCB12-1000/10	6	1410	8130	0.85	58	820 x 820
SCB12-1250/10	6	1670	9690	0.85	60	820 x 820
SCB12-1600/10	6	1960	11700	0.85	60	820 x 820
SCB12-2000/10	6	2440	14400	0.70	62	820 x 820
SCB12-2500/10	6	2880	17100	0.70	62	820 x 820

Class F Insulation SCB13-315~2500/10
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n
SCB13-200/10	4	445	2270	1.1	53	550 x 550
SCB13-250/10	4	515	2480	1.1	53	550 x 550
SCB13-315/10	4	635	3120	1.0	55	660 x 660
SCB13-400/10	4	705	3590	1.0	55	660 x 660
SCB13-500/10	4	835	4390	1.0	57	660 x 660
SCB13-630/10	4	965	5290	0.85	57	820 x 820
SCB13-630-10	6	935	5360	0.85	57	820 x 820
SCB13-800/10	6	1090	6260	0.85	58	820 x 820
SCB13-1000/10	6	1270	7310	0.85	58	820 x 820
SCB13-1250/10	6	1500	8720	0.85	60	820 x 820
SCB13-1600/10	6	1760	10500	0.85	60	820 x 820
SCB13-2000/10	6	2190	13000	0.70	62	820 x 820
SCB13-2500/10	6	2590	15400	0.70	62	820 x 820

SCB14-500~2500/10, NX2, Compliant with GB20052-2020 Energy Efficiency Standard.
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n
SCB14-500/10	4	790	4390	1.0	57	660 x 660
SCB14-630/10	4	910	5290	0.85	57	820 x 820
SCB14-630/10	6	885	5365	0.85	57	820 x 820
SCB14-800/10	6	1035	6265	0.85	58	820 x 820
SCB14-1000/10	6	1205	7315	0.85	58	820 x 820
SCB14-1250/10	6	1420	8720	0.85	60	820 x 820
SCB14-1600/10	6	1665	10555	0.85	60	820 x 820
SCB14-2000/10	6	2075	13005	0.70	62	820 x 820
SCB14-2500/10	6	2450	15445	0.70	62	820 x 820

SCB18-500~2500/10, NX1, Compliant with GB20052-2020 Energy Efficiency Standard.
Rated High Voltage：10（10.5,11,6.6,6.3,6）kV
Rated Low Voltage：0.4kV
Connection Group：Dyn11or Yyn0
*Insulation Level：Ll 75 AC 35 / Ll AC 3 ; Tap Range：±22.5%**
Model	UK%	P0(W)	Pk（120℃）（W)	I0%	LPA(AN)dB	Gauge m x n (mm)
SCB18-500/10	4	670	4390	1.0	57	660 x 660
SCB18-630/10	4	775	5290	0.85	57	820 x 820
SCB18-630/10	6	750	5365	0.85	57	820 x 820
SCB18-800/10	6	875	6265	0.85	58	820 x 820
SCB18-1000/10	6	1020	7315	0.85	58	820 x 820
SCB18-1250/10	6	1205	8720	0.85	60	820 x 820
SCB18-1600/10	6	1415	10555	0.85	60	820 x 820
SCB18-2000/10	6	1760	13005	0.70	62	820 x 820
SCB18-2500/10	6	2080	15445	0.70	62	820 x 820
