PRODUCT OVERVIEWS

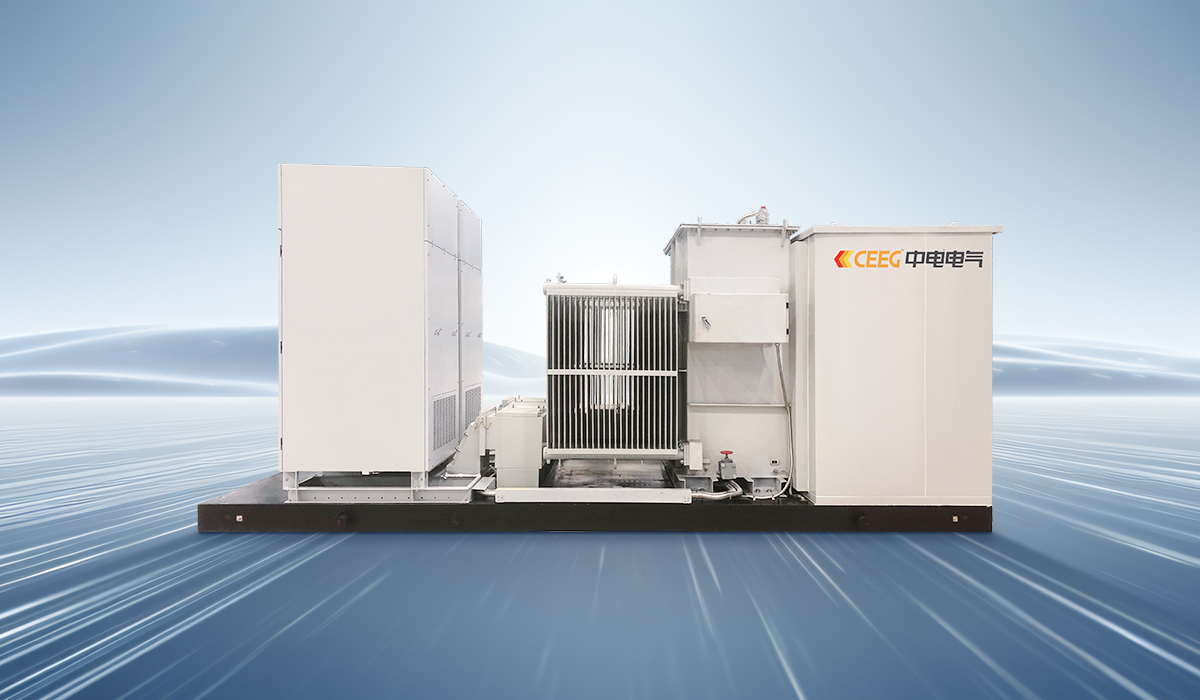

The ZGS series new energy box-type substation is a device specially designed for new energy power generation. It can boost the 0.315-1kV voltage generated by wind power or photovoltaic power generation to 10kV or 35kV for grid-connected output. Combining the actual needs of domestic new energy power generation and drawing on advanced technical experience from Europe and America, this product is specially customized for domestic new energy power generation scenarios. It fully adapts to the rapid development trend of new energy power plants across the country and has become an ideal supporting solution for new energy power generation systems.

Performance Characteristics

Sealing Protection

Excellent sealing performance, resistant to sand, salt spray, rain, and snow.

Strong Weather Resistance

The shell can be made of various materials, which can be selected according to different environments. It has strong environmental adaptability, with an attractive appearance that coordinates with wind power scenarios.

Natural Ventilation

The box-type substation is equipped with sufficient natural ventilation and heat insulation measures to ensure the normal operation of the step-up transformer.

Intelligent Control

It can be controlled locally and monitored remotely, realizing the four remote functions (remote measurement, remote signaling, remote control, and remote regulation).

Manufacturing Process

3D Design

Based on over 30 years of experience in transformer design, manufacturing, and experimentation, CECEP Electrical has developed an advanced "3D + parameterization" design software, which can realize automatic design, cost optimization, simulation, and emulation.

Power Intelligent Operation and Maintenance Platform

A new type of distribution terminal management mode with a four-layer structure: perception layer, network layer, platform layer, and application layer. It brings benefits to customers, achieving fine electricity consumption, safe electricity consumption, economic electricity consumption, and high-quality electricity consumption.

Simulation Analysis

Flow field, temperature field, electric field, leakage magnetic field, wave process, and short-circuit force. For the research, development, and design of each product series, simulation analysis of the flow field and temperature field is conducted to determine the average temperature rise and hot spot temperature of the coil, ensuring product performance.

Testing and Inspection Technology

All products undergo strict control of production processes and quality links. Before leaving the factory, they undergo rigorous tests and inspections by national standards and customer customization requirements, including partial discharge inspection, lightning impulse resistance inspection, noise inspection, and other mandatory inspection items.

Scope of Application

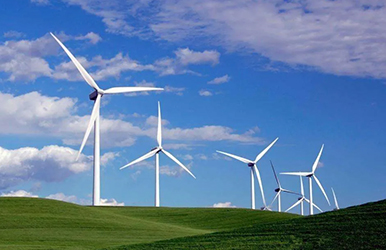

The ZGS series new energy box-type substation is widely used in new energy power generation fields such as wind farms and photovoltaic power stations. It can boost the 0.315-1kV voltage to 10kV or 35kV for grid-connected output, meeting the step-up needs of new energy power plants. Its design fully considers the climatic conditions of different regions, such as harsh environments with sand, salt spray, rain, and snow, and is also suitable for various complex terrains and environments, especially for large-scale new energy power generation scenarios.
