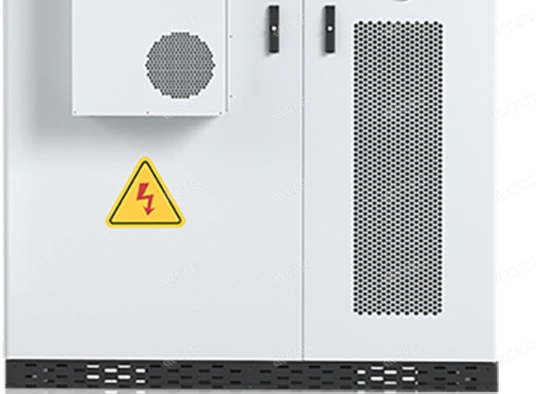

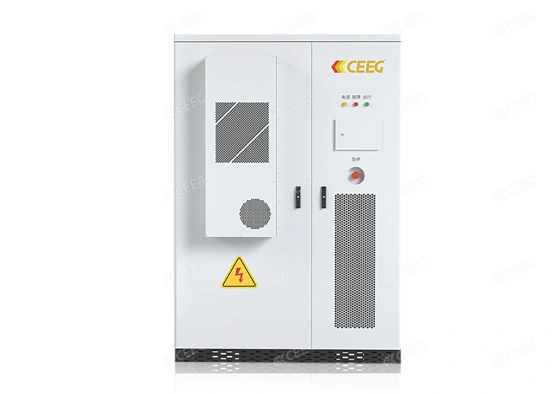

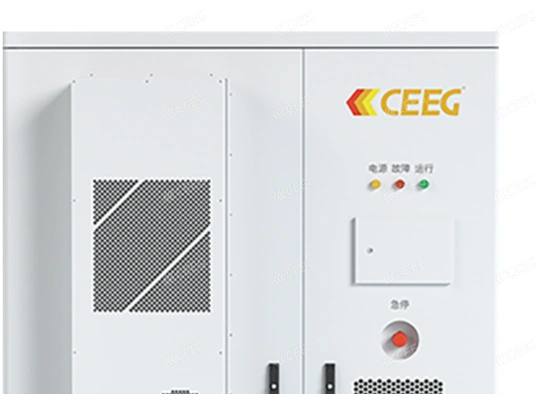

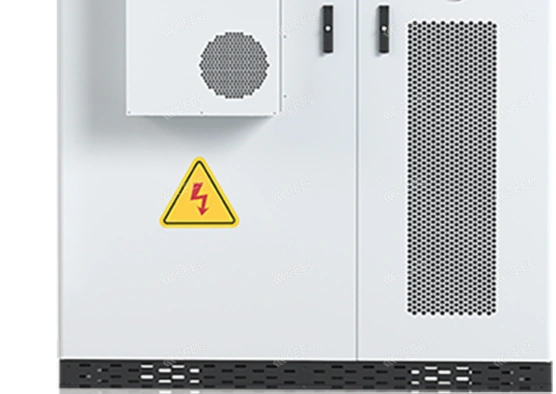

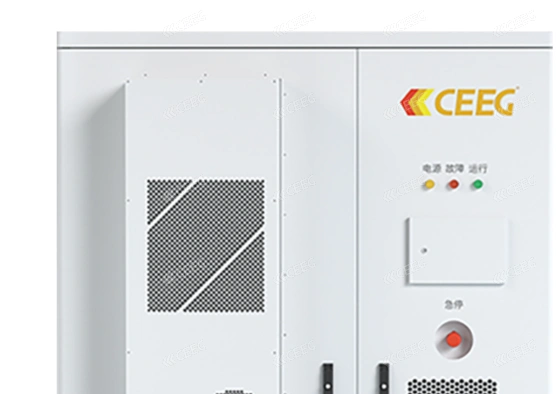

CEEG 215kWh Air-cooled Energy Storage System

Industrial & commercial energy storage system

Contact Us Send an email
LiFePO4
BATTERY TYPE
IP54
IP LEVEL
Air Cooling
BATTERY COOLING METHOD
0~95%
RELATIVE HUMIDITY

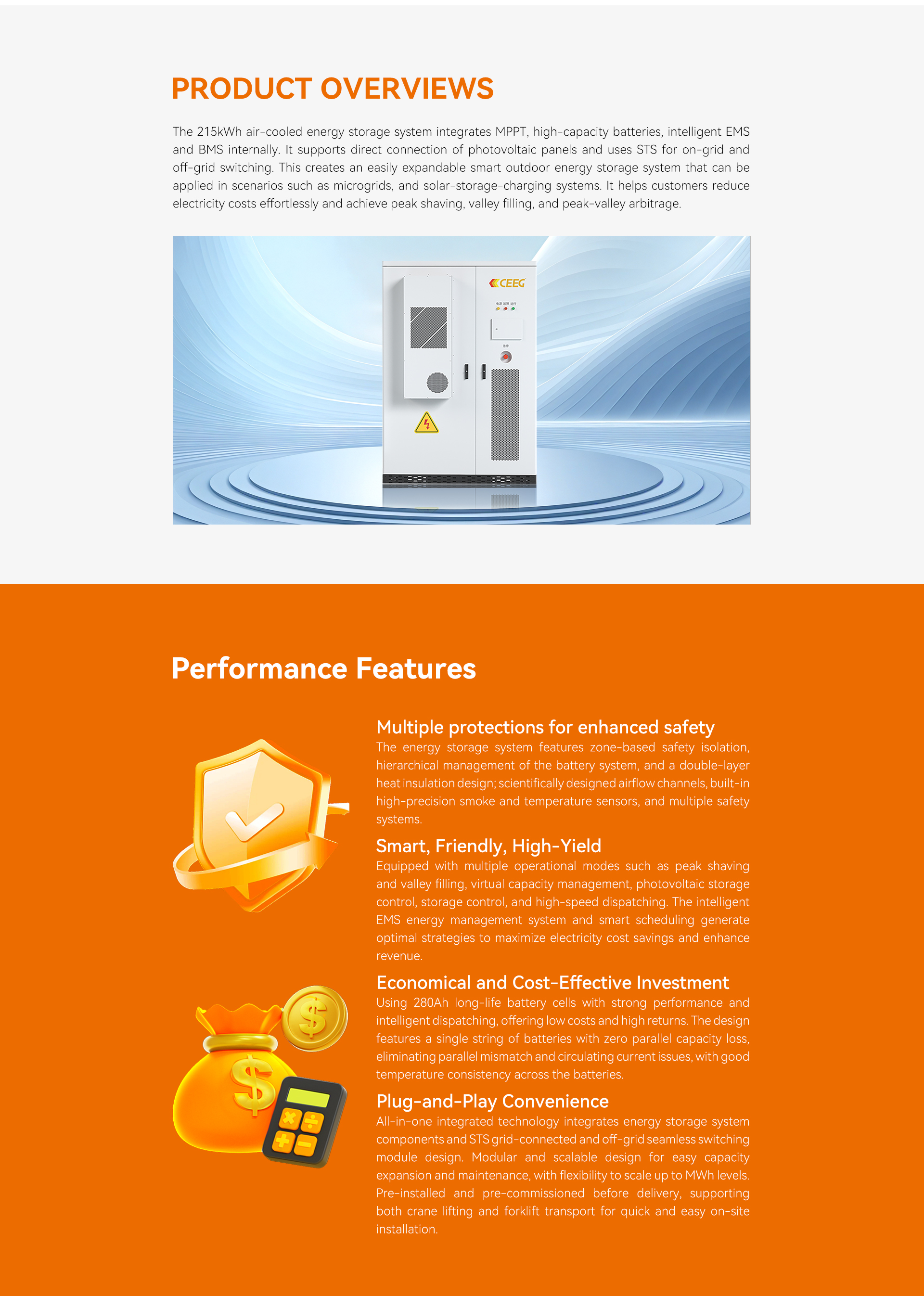

PRODUCT OVERVIEWS

The 215kWh air-cooled energy storage system integrates MPPT, high-capacity batteries, intelligent EMS and BMS internally. It supports direct connection of photovoltaic panels and uses STS for on-grid and off-grid switching. This creates an easily expandable smart outdoor energy storage system that can be applied in scenarios such as microgrids, and solar-storage-charging systems. It helps customers reduce electricity costs effortlessly and achieve peak shaving, valley filling, and peak-valley arbitrage.

Multiple protections for enhanced safety:

The energy storage system features zone-based safety isolation, hierarchical management of the battery system, and a double-layer heat insulation design; scientifically designed airflow channels, built-in high-precision smoke and temperature sensors, and multiple safety systems.

Smart, Friendly, High-Yield:

Equipped with multiple operational modes such as peak shaving and valley filling, virtual capacity management, photovoltaic storage control, storage control, and high-speed dispatching. The intelligent EMS energy management system and smart scheduling generate optimal strategies to maximize electricity cost savings and enhance revenue.

Economical and Cost-Effective Investment:

Using 280Ah long-life battery cells with strong performance and intelligent dispatching, offering low costs and high returns. The design features a single string of batteries with zero parallel capacity loss, eliminating parallel mismatch and circulating current issues, with good temperature consistency across the batteries.

Plug-and-Play Convenience:

All-in-one integrated technology integrates energy storage system components and STS grid-connected and off-grid seamless switching module design. Modular and scalable design for easy capacity expansion and maintenance, with flexibility to scale up to MWh levels. Pre-installed and pre-commissioned before delivery, supporting both crane lifting and forklift transport for quick and easy on-site installation.

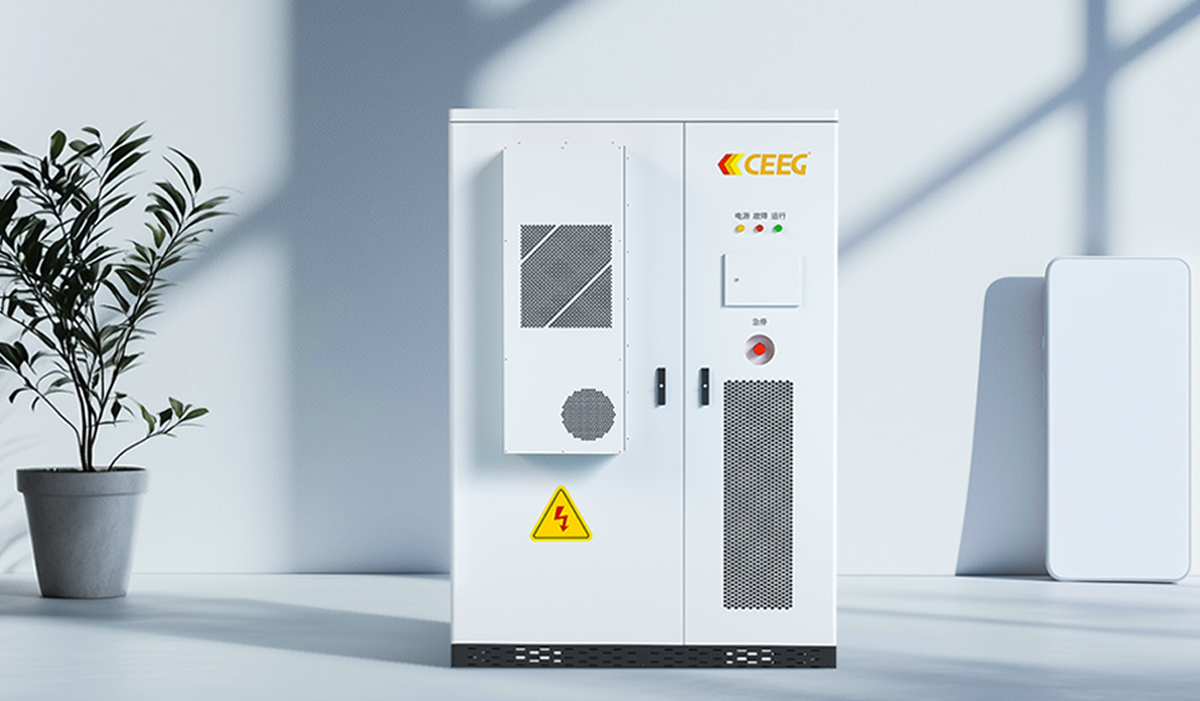

215kWh air-cooled energy storage system (4).png

PARAMETERS

Model

CEIC-W-215kWh-100kW

Battery Parameters

Battery Type

Lithium Iron Phosphate

Charge/Discharge Rate

≤0.5C

Nominal Voltage [V]

768

Operating Voltage Range [V]

672~852

Cell Rated Capacity [Ah]

280

DC Nominal Capacity [kWh]

215.04

Composition plan

1P240S

AC Parameters (Grid Side)

Rated Output Power [kW]

200

Rated Output Current [A]

288.7

Rated Grid Voltage [V]

3W/N/PE, 400

Rated Grid Frequency [Hz]

60

Grid Frequency Range [Hz]

55~65

Total current waveform distortion rate

<3% (at rated power)

DC Component

<0.5% In

Power Factor

>0.99 (at rated power)

AC Output (load side)

Rated output power [kW]

100

Maximum output current [A]

159

Rated output voltage [V]

3W/N/PE, 400

Rated output frequency [Hz]

50/60

Unbalanced load capacity

100%

General parameters

Protection level

IP54

Communication methods

4G, Ethernet

Communication protocol

MQTT

Operating temperature range [°C]

 -20 to +50

PCS Cooling method

Temperature control intelligent air cooling

Battery cooling method

Air conditioning air cooling

Fire protection system

Equipped

Maximum altitude [m]

5000 (>1000 requires derating)

Relative humidity

0~95%, no condensation

Net weight [t]

<3

Dimensions (W×D×H) [mm]

1670×1400×2400

INDUSTRY-TAILORED SOLUTIONS
We leverage deep industry expertise and proven experience to deliver sustainable, cutting-edge power equipment solutions across multiple sectors.
Contact Us
CERTIFICATES
DUAL CNAS TESTING LABORATORIES & TÜV RHEINLAND AUTHORIZED CERTIFICATION

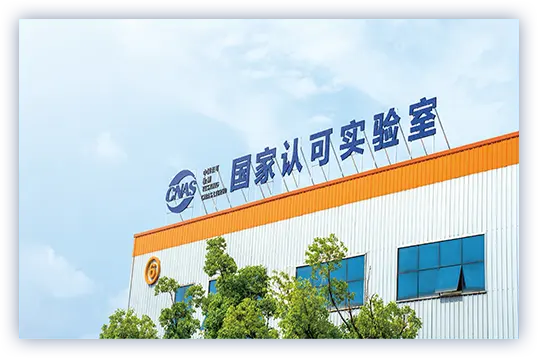

The company has established two CNAS laboratories and one Rhein witness laboratory. The test reports are internationally recognized by 109 global organizations, including IAF (International Accreditation Forum), PAC (Pacific Accreditation Cooperation), ILAC (International Laboratory Accreditation Cooperation), and APLAC (Asia-Pacific Laboratory Accreditation Cooperation).

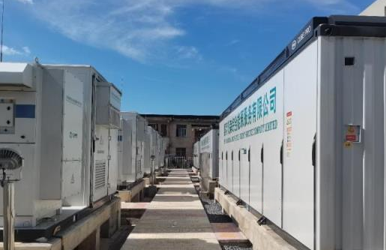

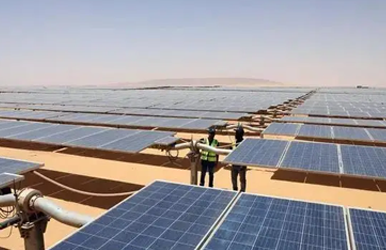

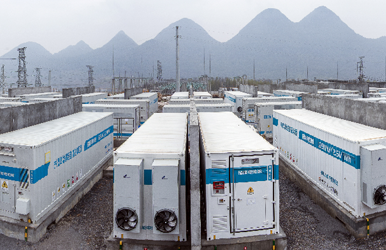

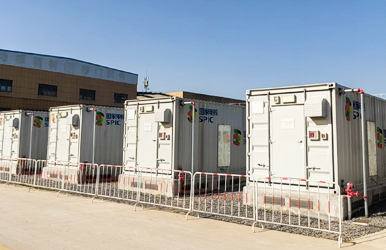

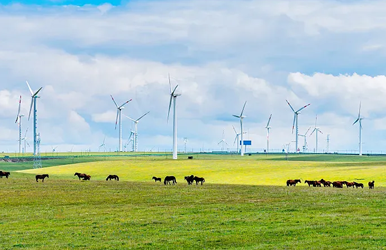

PROJECT CASES
