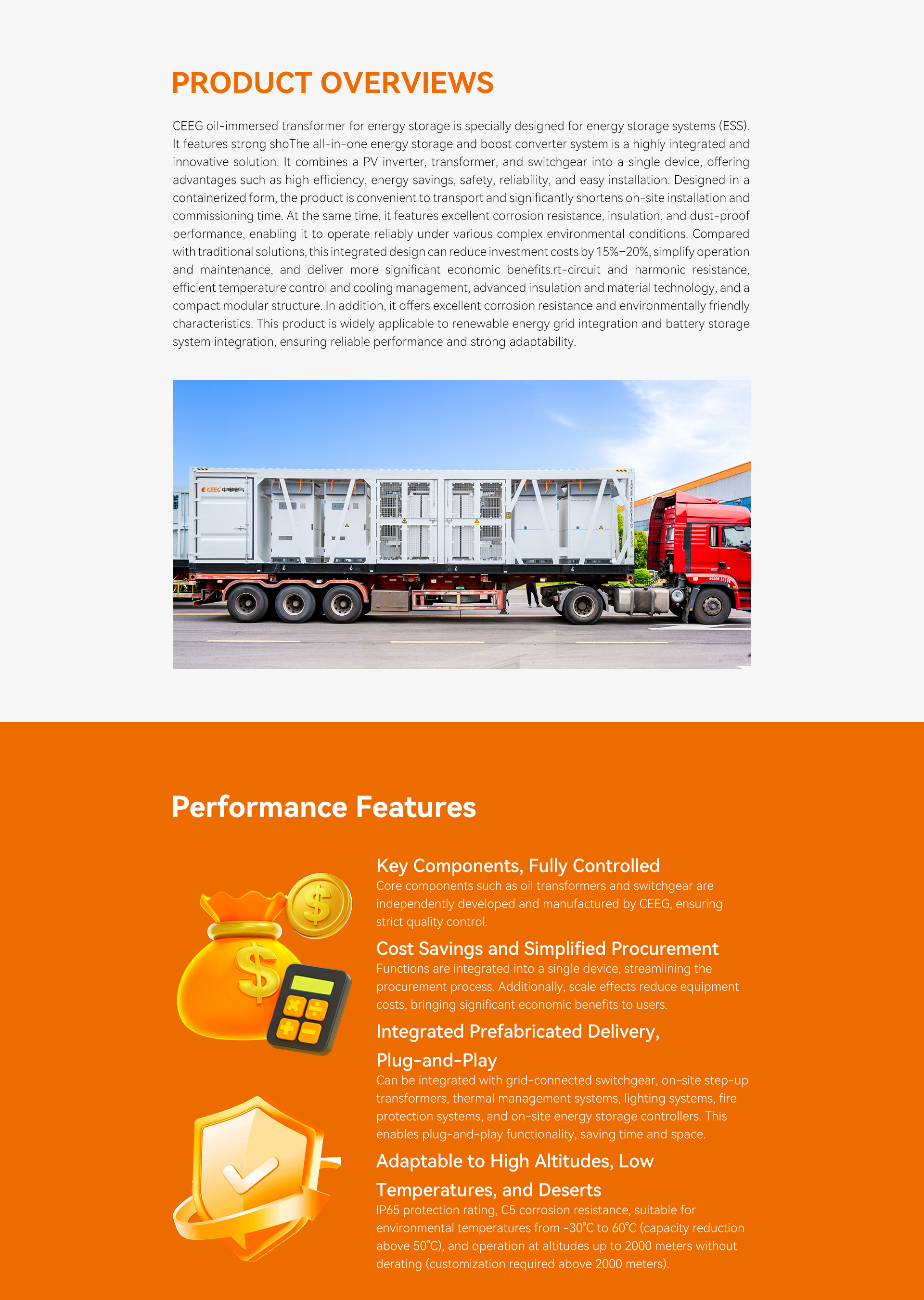

PRODUCT OVERVIEWS

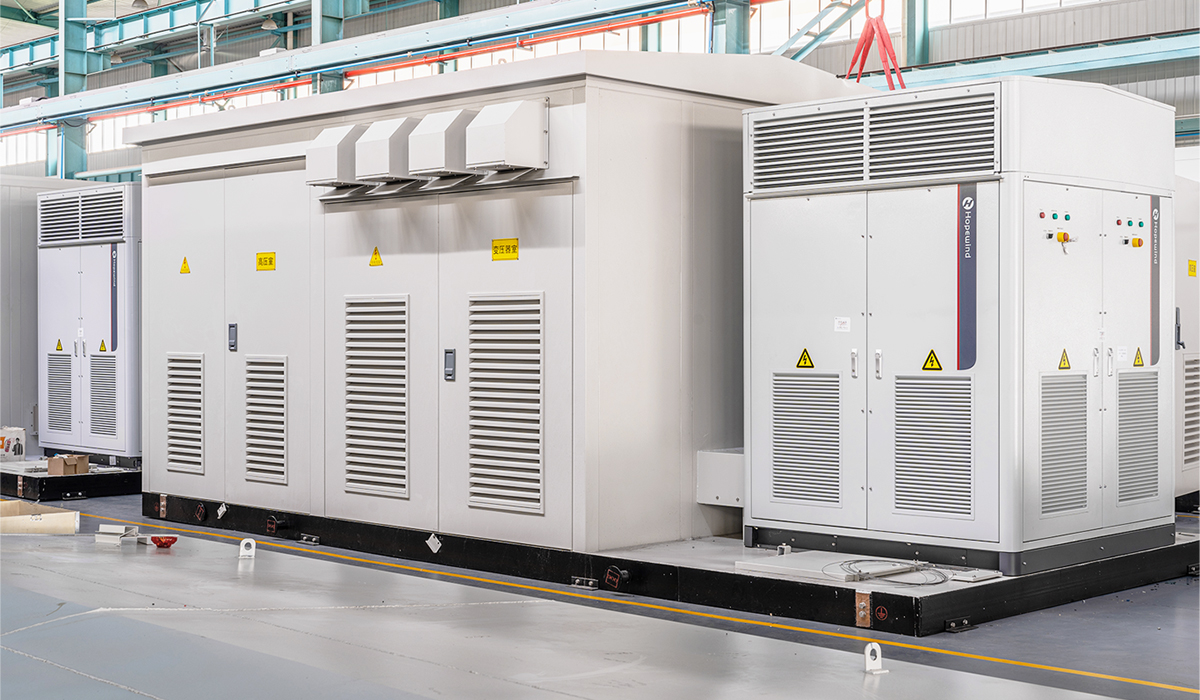

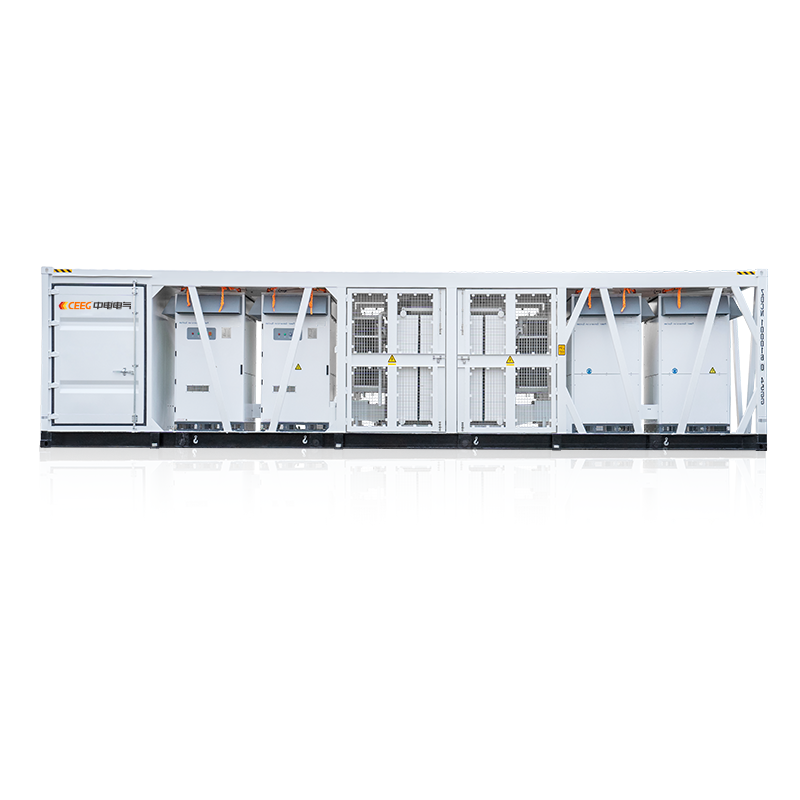

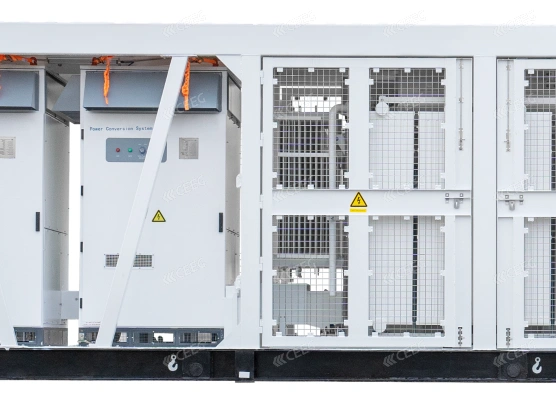

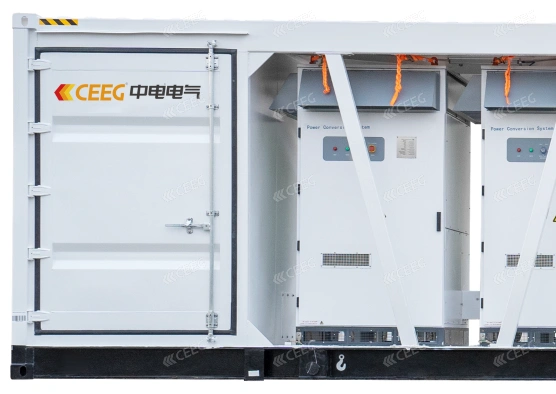

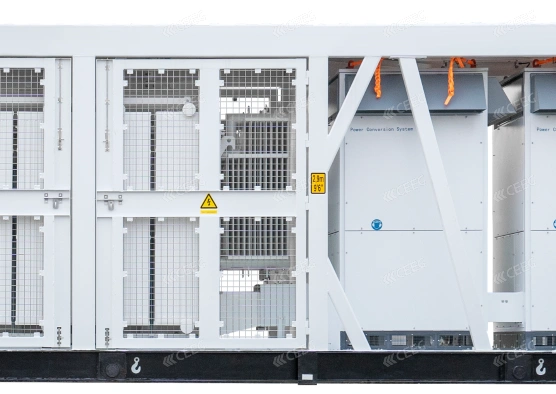

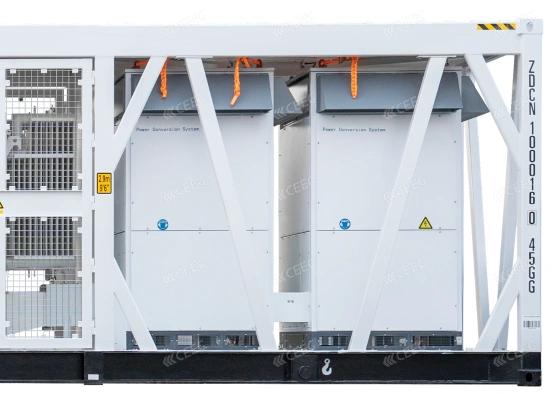

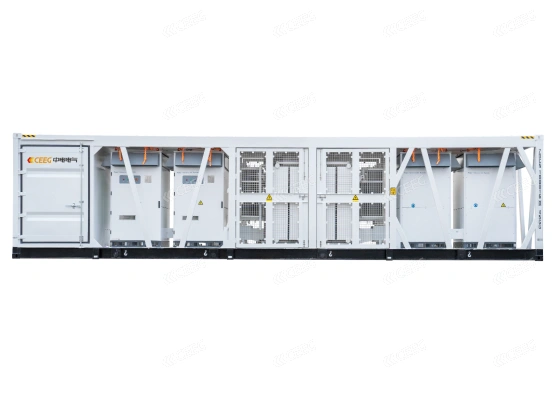

With a voltage range of 6kV to 35kV, the maximum single-unit capacity can reach up to 10MW. It integrates energy storage modules, step-up transformers, PCS, as well as high and low voltage distribution units and communication units into one system. It has successfully served over 100 customers nationwide, with a total supply of more than 10,000 units.

1. Key Components, Fully Controlled:

Core components such as oil transformers and switchgear are independently developed and manufactured by CEEG, ensuring strict quality control.

2. Cost Savings and Simplified Procurement:

Functions are integrated into a single device, streamlining the procurement process. Additionally, scale effects reduce equipment costs, bringing significant economic benefits to users.

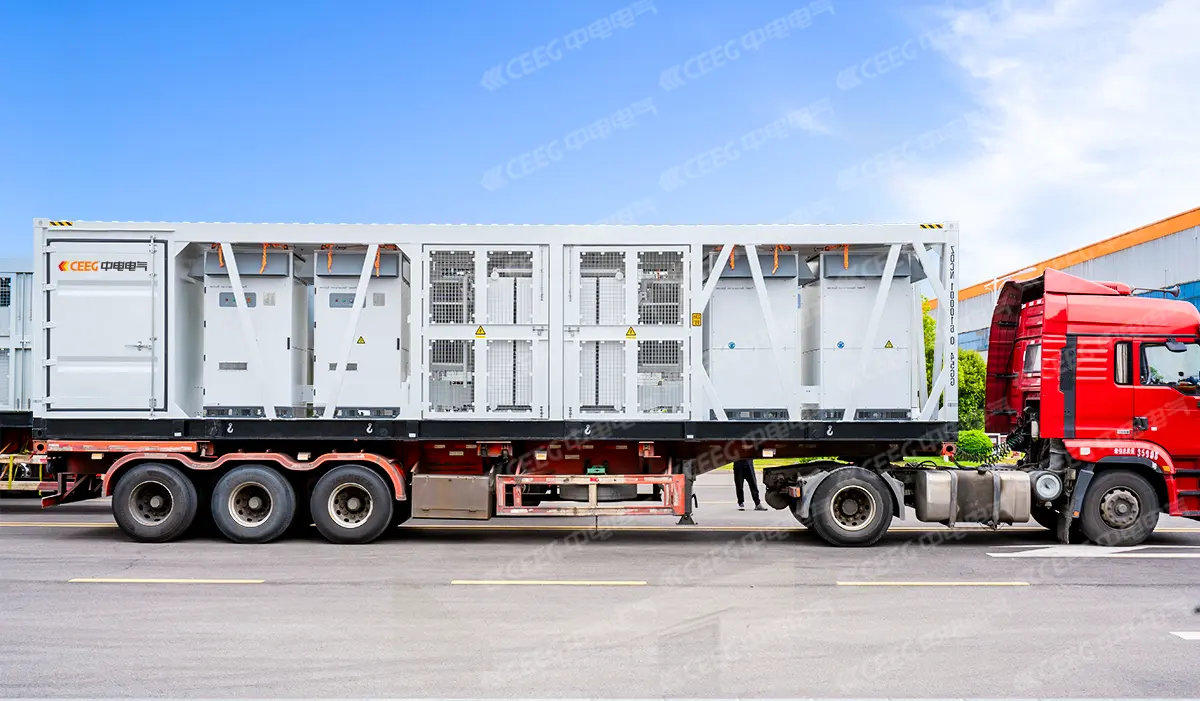

3. Integrated Prefabricated Delivery, Plug-and-Play:

Can be integrated with grid-connected switchgear, on-site step-up transformers, thermal management systems, lighting systems, fire protection systems, and on-site energy storage controllers. This enables plug-and-play functionality, saving time and space.

4. Adaptable to High Altitudes, Low Temperatures, and Deserts:

IP65 protection rating, C5 corrosion resistance, suitable for environmental temperatures from -30°C to 60°C (capacity reduction above 50°C), and operation at altitudes up to 2000 meters without derating (customization required above 2000 meters).

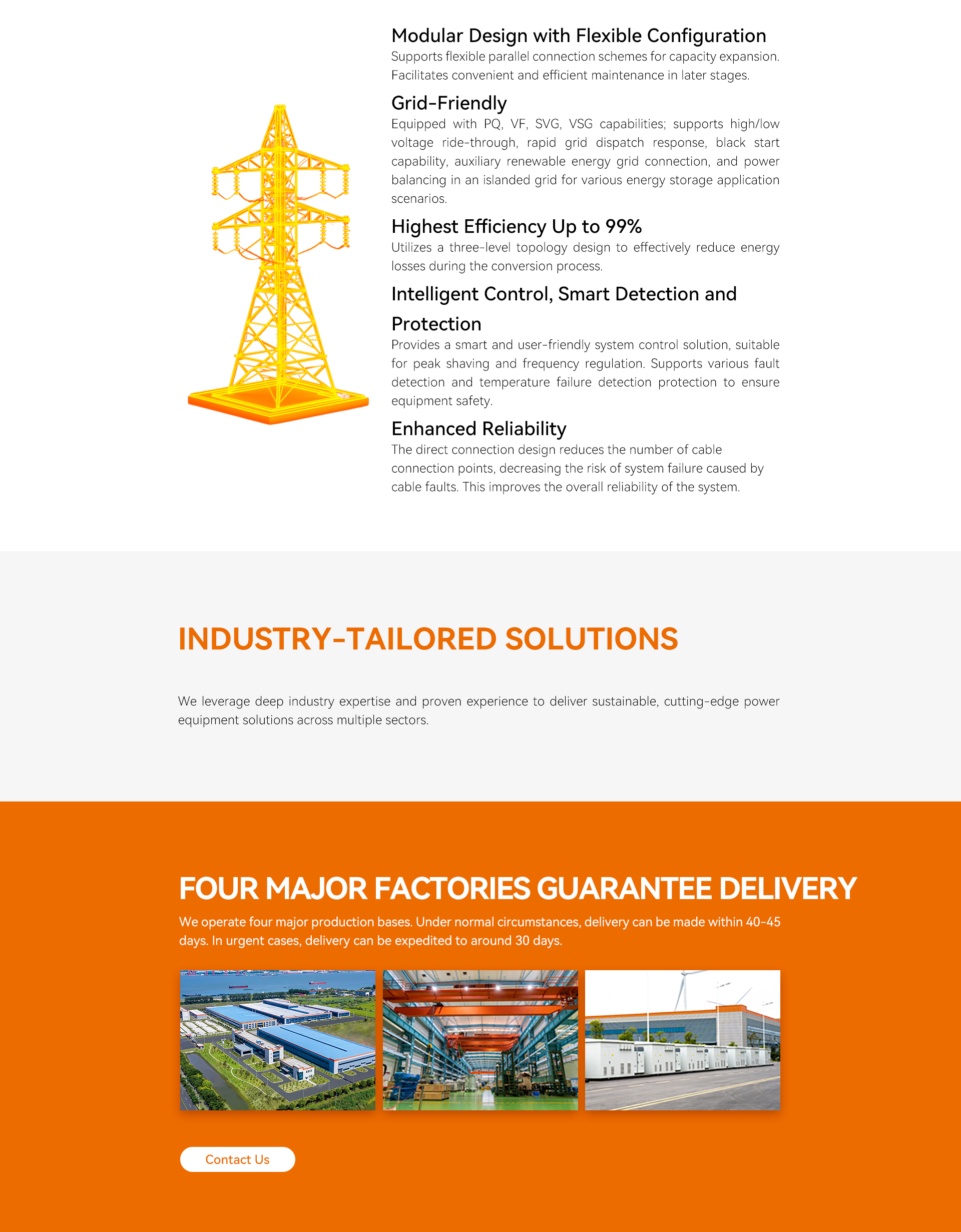

5. Modular Design with Flexible Configuration:

Supports flexible parallel connection schemes for capacity expansion. Facilitates convenient and efficient maintenance in later stages.

6. Grid-Friendly:

Equipped with PQ, VF, SVG, VSG capabilities; supports high/low voltage ride-through, rapid grid dispatch response, black start capability, auxiliary renewable energy grid connection, and power balancing in an islanded grid for various energy storage application scenarios.

7. Highest Efficiency Up to 99%:

Utilizes a three-level topology design to effectively reduce energy losses during the conversion process.

8. Intelligent Control, Smart Detection and Protection:

Provides a smart and user-friendly system control solution, suitable for peak shaving and frequency regulation. Supports various fault detection and temperature failure detection protection to ensure equipment safety.

9. Enhanced Reliability:

The direct connection design reduces the number of cable connection points, decreasing the risk of system failure caused by cable faults. This improves the overall reliability of the system.

PARAMETERS
