PRODUCT OVERVIEWS

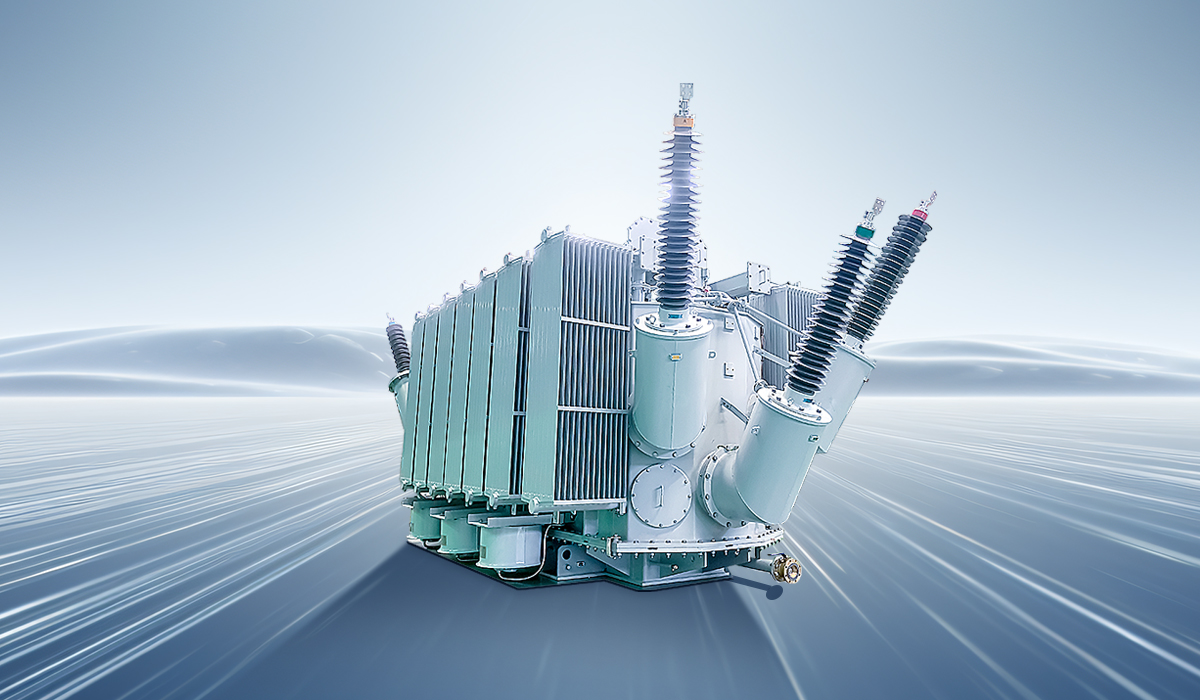

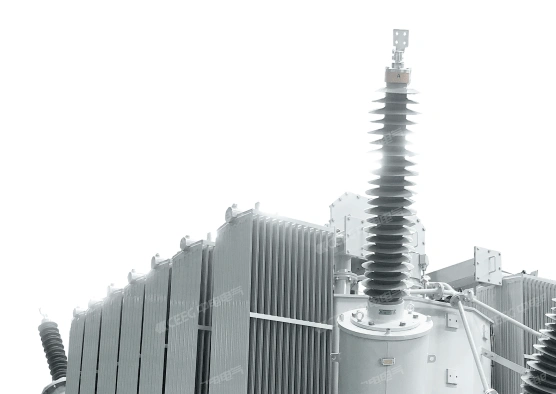

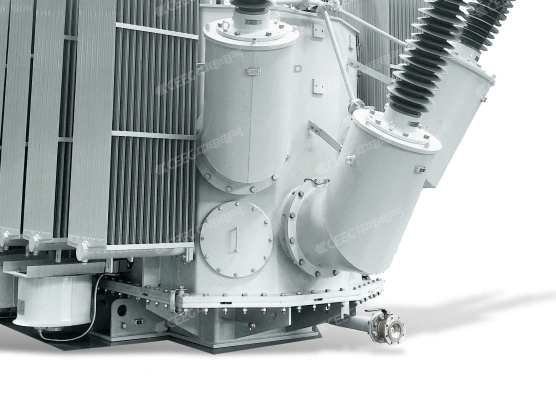

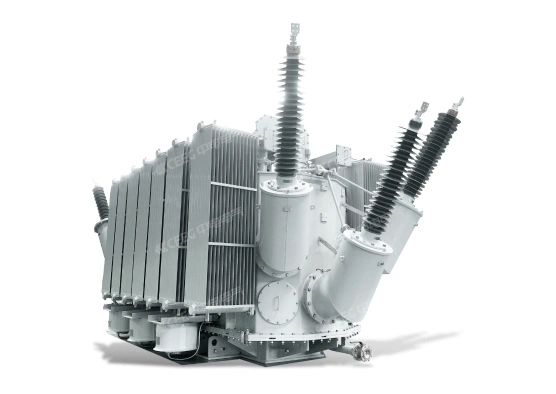

As the core equipment of mobile substations, the design and quality of vehicle-mounted transformers are crucial to the overall performance of mobile substations.

Performance Features

High temperature resistance

It has a good cooling system to ensure stable operation even under high-temperature operations.

Stable power output

It meets the requirements of the whole vehicle's on-board transportation performance under various road conditions and the live operation of mobile substations.

Shock and vibration resistance

It will not be damaged or malfunction during driving.

Safety and reliability

It prevents safety problems such as electric leakage and overload.

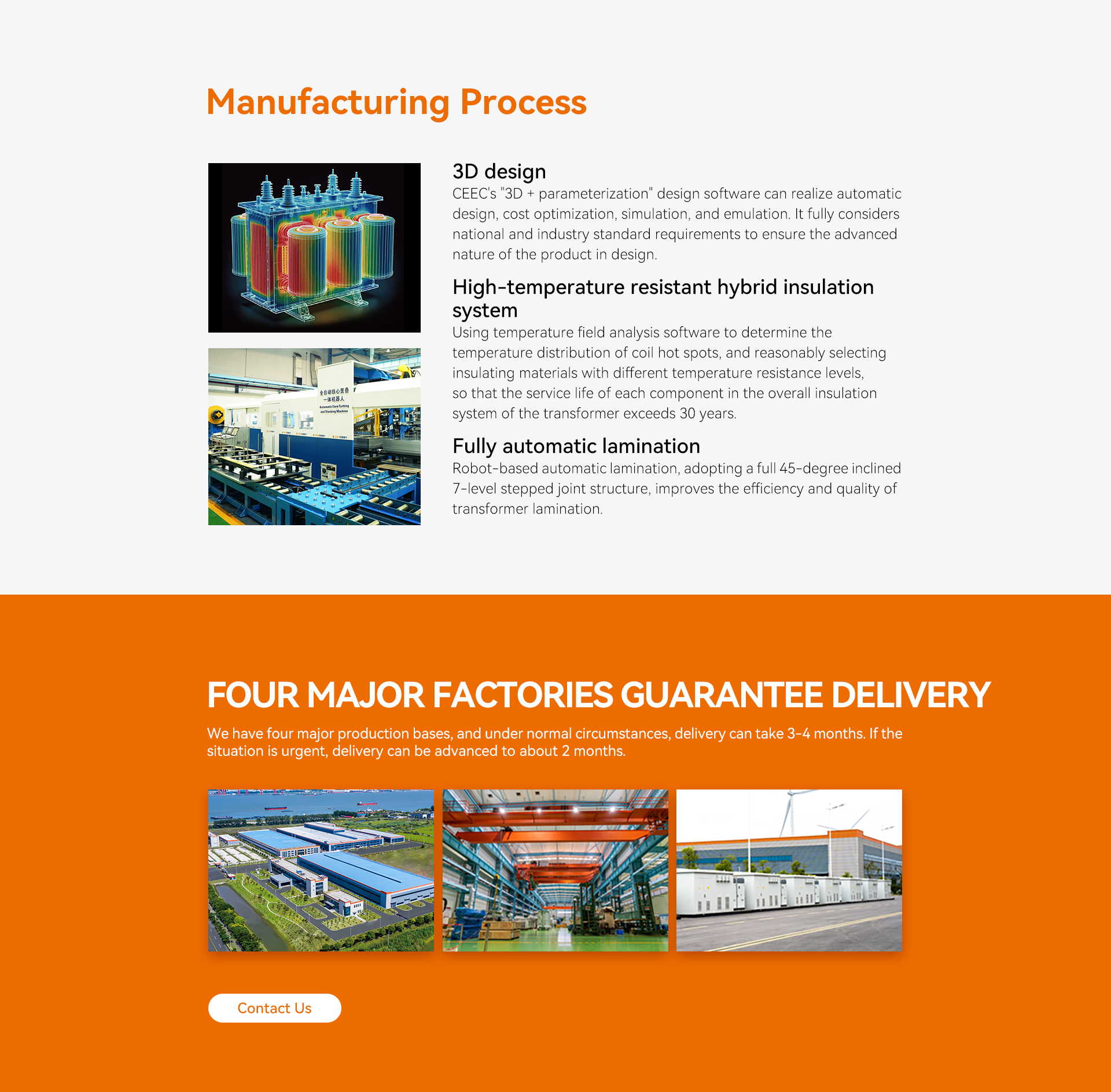

Manufacturing Process

3D design

CEEC's "3D + parameterization" design software can realize automatic design, cost optimization, simulation, and emulation. It fully considers national and industry standard requirements to ensure the advanced nature of the product in design.

High-temperature resistant hybrid insulation system

Using temperature field analysis software to determine the temperature distribution of coil hot spots, and reasonably selecting insulating materials with different temperature resistance levels, so that the service life of each component in the overall insulation system of the transformer exceeds 30 years.

Fully automatic lamination

Robot-based automatic lamination, adopting a full 45-degree inclined 7-level stepped joint structure, improves the efficiency and quality of transformer lamination.

Testing and detection technology

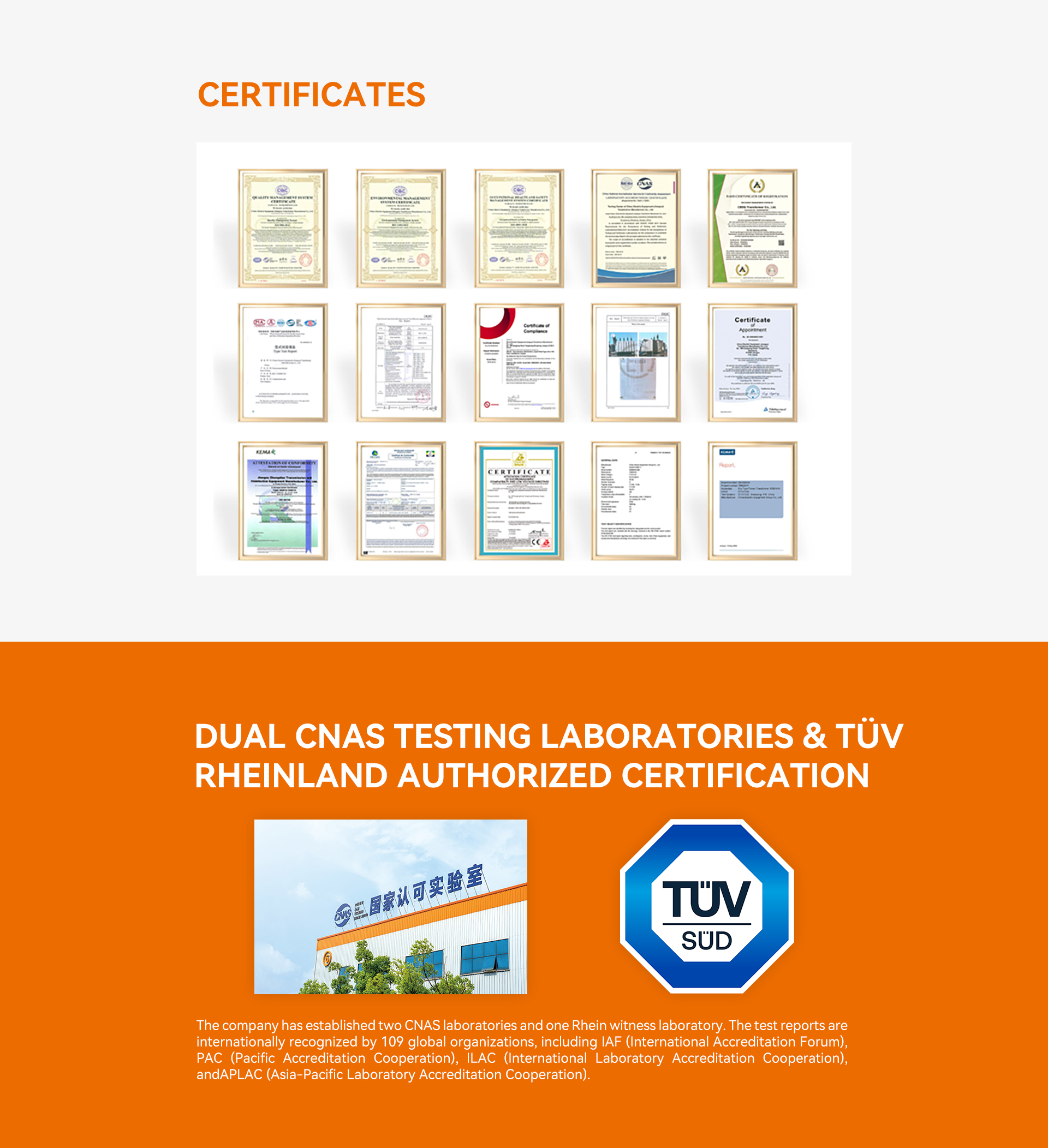

The company has 2 CNAS laboratories and 1 TÜV Rheinland witness laboratory. All products undergo strict testing and inspection by relevant standards and customer-specific requirements before leaving the factory.
