PRODUCT OVERVIEWS

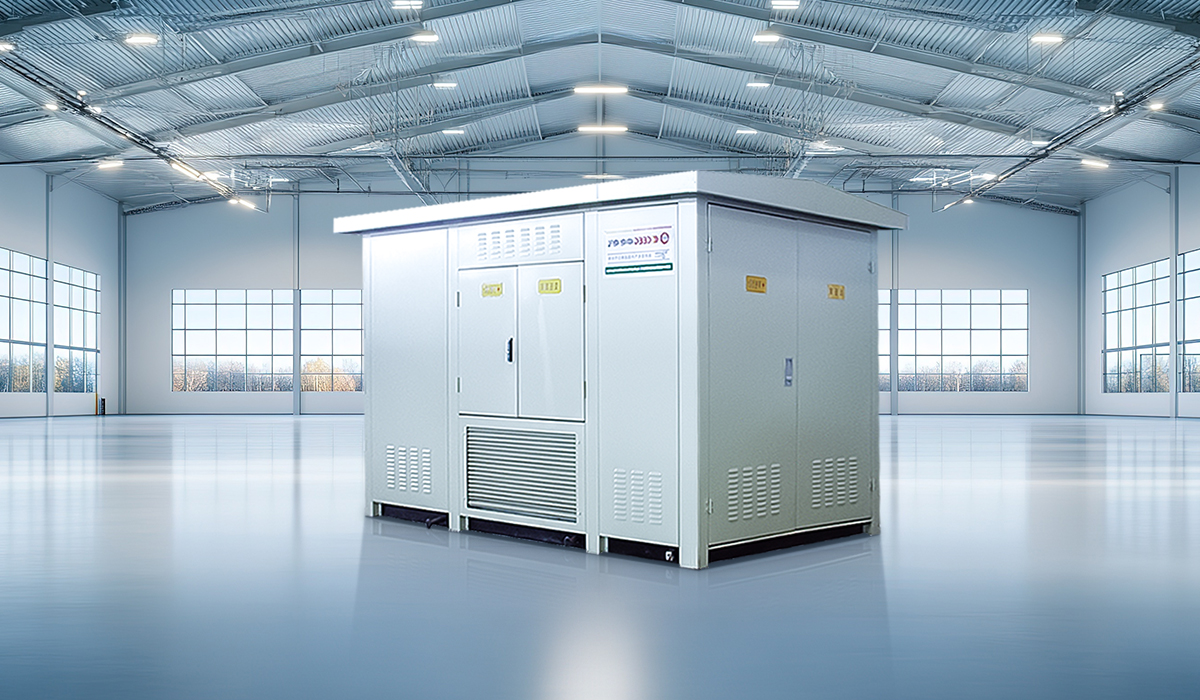

The YBF Series Wind/Solar Substation is a high-efficiency power conversion device specifically designed for wind and solar power generation systems. It steps up the low-voltage power (0.6-0.69kV) generated by wind turbines or photovoltaic panels to 10kV or 35kV and delivers it stably to the grid. Utilizing advanced electrostatic spraying technology and an intelligent control system, it operates reliably in harsh environments, offering excellent protection against windblown sand, salt spray, rain, and snow. It is widely used in wind power, photovoltaic, and other renewable energy generation fields.

Performance Features

Strong Weather Resistance

Selectable enclosures tailored to the environment, highly adaptable, aesthetically pleasing design harmonizing with wind farm landscapes.

Natural Ventilation

Natural ventilation with thermal insulation measures. Forced ventilation activates when the ambient temperature approaches 40℃, ensuring normal operation.

Triple-Protection

Enclosure employs advanced electrostatic spraying technology, resistant to rust and fading, with excellent sealing performance against windblown sand, salt spray, rain, and snow.

Intelligent Control

Supports both local control and remote monitoring, achieving "four-remote functions" (telemetry, telesignalling, telecontrol, teleadjusting).

Manufacturing Process

3D Design

Leveraging over 30 years of experience in transformer design, manufacturing, and testing, CEEG has developed advanced "3D + Parametric" design software enabling automated design, cost optimization, simulation, and modeling.

Power Intelligent Operation & Maintenance Platform

A new power distribution terminal management model with a four-layer structure: Perception Layer, Network Layer, Platform Layer, and Application Layer. Delivers benefits to customers, achieving refined, safe, economical, and high-quality electricity usage.

Simulation Analysis

Flow field, temperature field, electric field, leakage magnetic field, wave process, and short-circuit forces. The R&D and design of each product series undergo simulation analysis of flow and temperature fields to determine average winding temperature rise and hotspot temperature, ensuring product performance.

Testing & Inspection

All products undergo strict control of production processes and quality. Before shipment, they undergo rigorous testing and inspection by national standards and customer-specific requirements, including partial discharge testing, lightning impulse withstand testing, noise testing, and other mandatory inspection items.

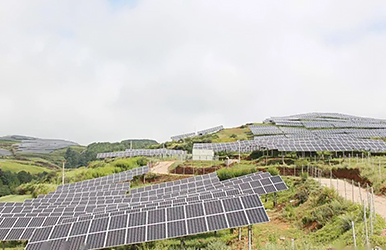

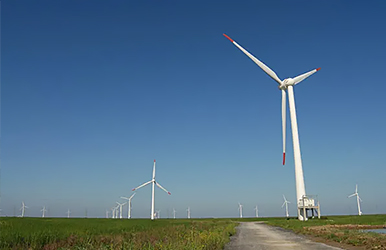

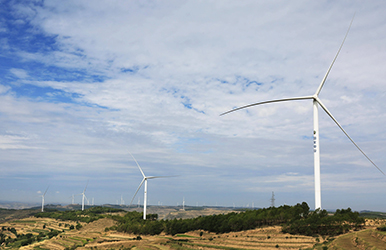

Scope of Application

The YBF Series Wind/Solar Substation is widely applicable in wind farms, photovoltaic power stations, and other renewable energy generation fields. It efficiently steps up low-voltage power to 10kV or 35kV, enabling grid connection and output. It adapts to various complex environmental conditions, ensuring the stable operation and efficient utilization of the power system.
